Milesight Fixed Bullet 740 — SFTP Setup ​

These instructions guide you through configuring your camera to securely send images to Beason using SFTP.

Prerequisites ​

Before you begin, make sure you have:

  • Access to your camera web interface
  • Your Camera Endpoint Username and Password from the Beason dashboard
  • Your device name or manual device ID from Beason

Step 1: Log in to the camera ​

  1. Log in to your camera through its web interface.
  2. Click the gear icon to open Settings.

Screenshot

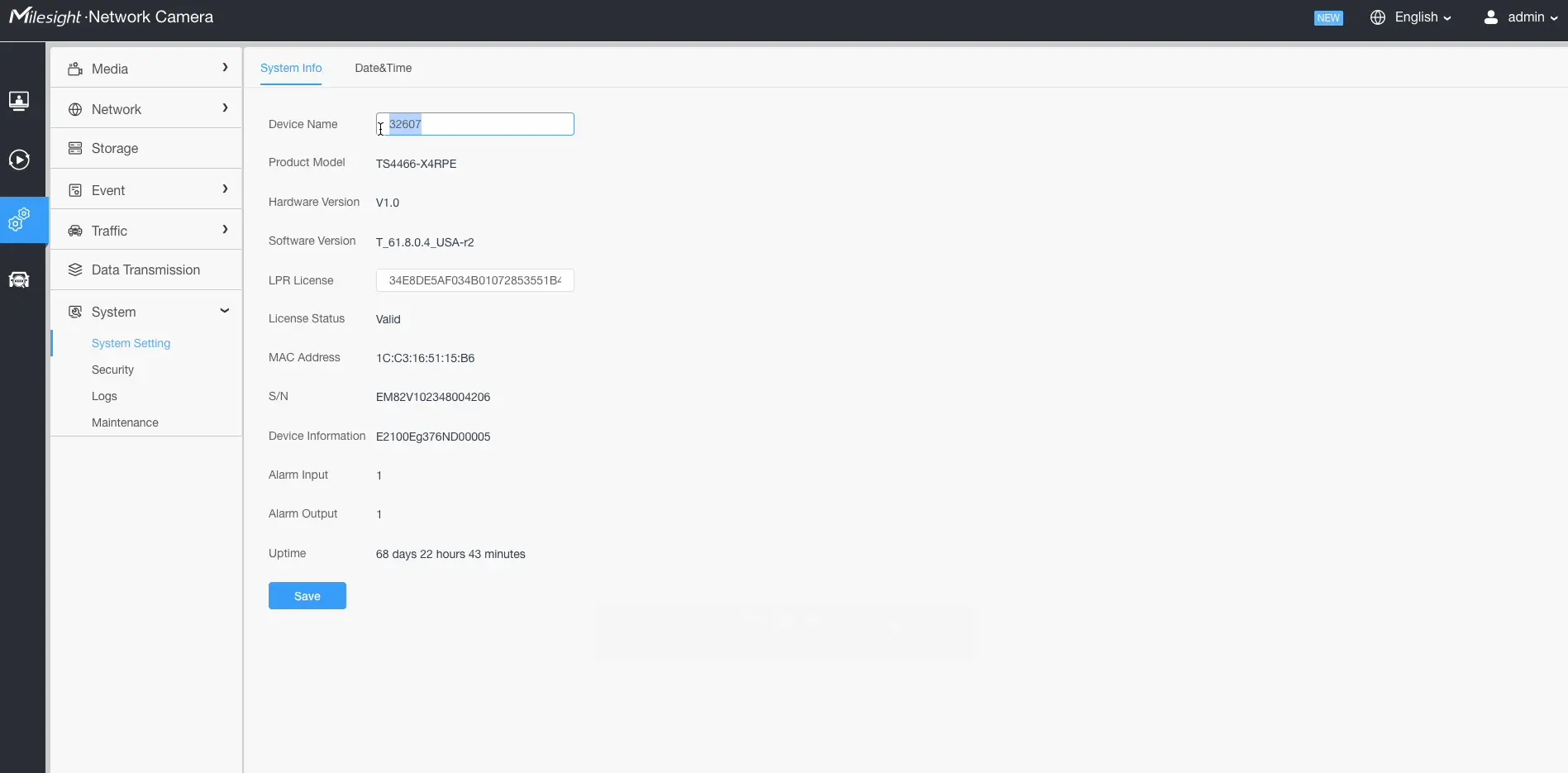

Step 2: Configure the device name ​

  1. In the settings menu, select System.
  2. Click System Settings.
  3. Open the System Info tab.
  4. Enter the Device Name.

Device name rules:

  • Must not contain spaces
  • Must exactly match the device name or manual device ID used in Beason
  1. Click Save.

Screenshot

Step 3: Open network settings ​

  1. From the left-hand menu, select Network.
  2. Click Basic.
  3. Select the FTP tab.

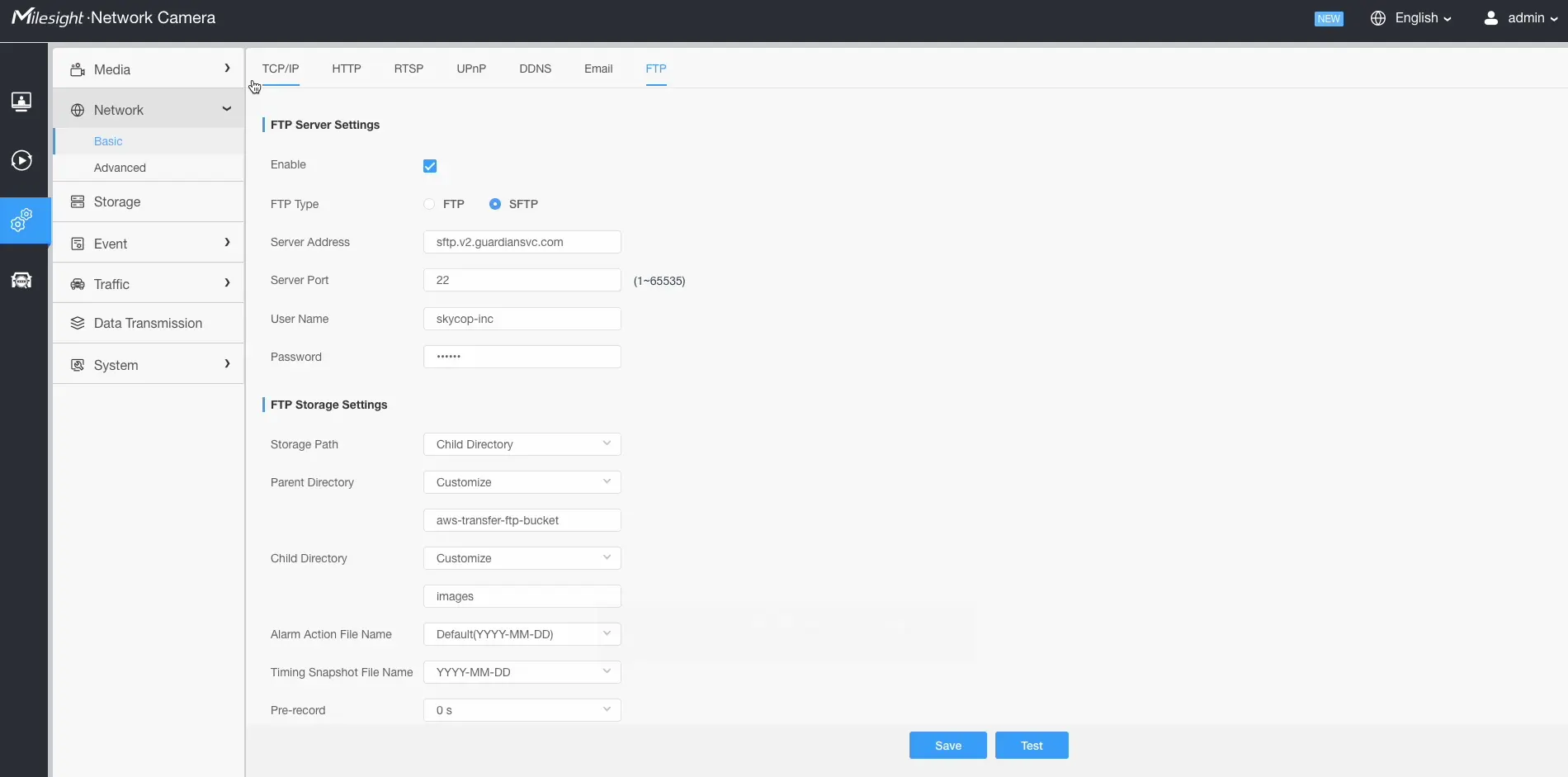

Step 4: Configure FTP (SFTP) ​

  1. Check the Enable box.
  2. Set FTP Type to SFTP.
  3. Enter the following server details:
    • Server Address: sftp.beaconlpr.com
    • Port: 2222
  4. Enter your Camera Endpoint Username and Password.

These credentials are located in the Settings page of your Beason dashboard.

Step 5: Configure FTP Storage Settings ​

Under FTP Storage Settings:

  1. Set Storage Path to Child Directory.
  2. Enable Customize for the parent directory and enter:
    • aws-transfer-ftp-bucket
  3. Enable Customize again and enter:
    • images
  4. Leave all remaining settings at default values.

Screenshot

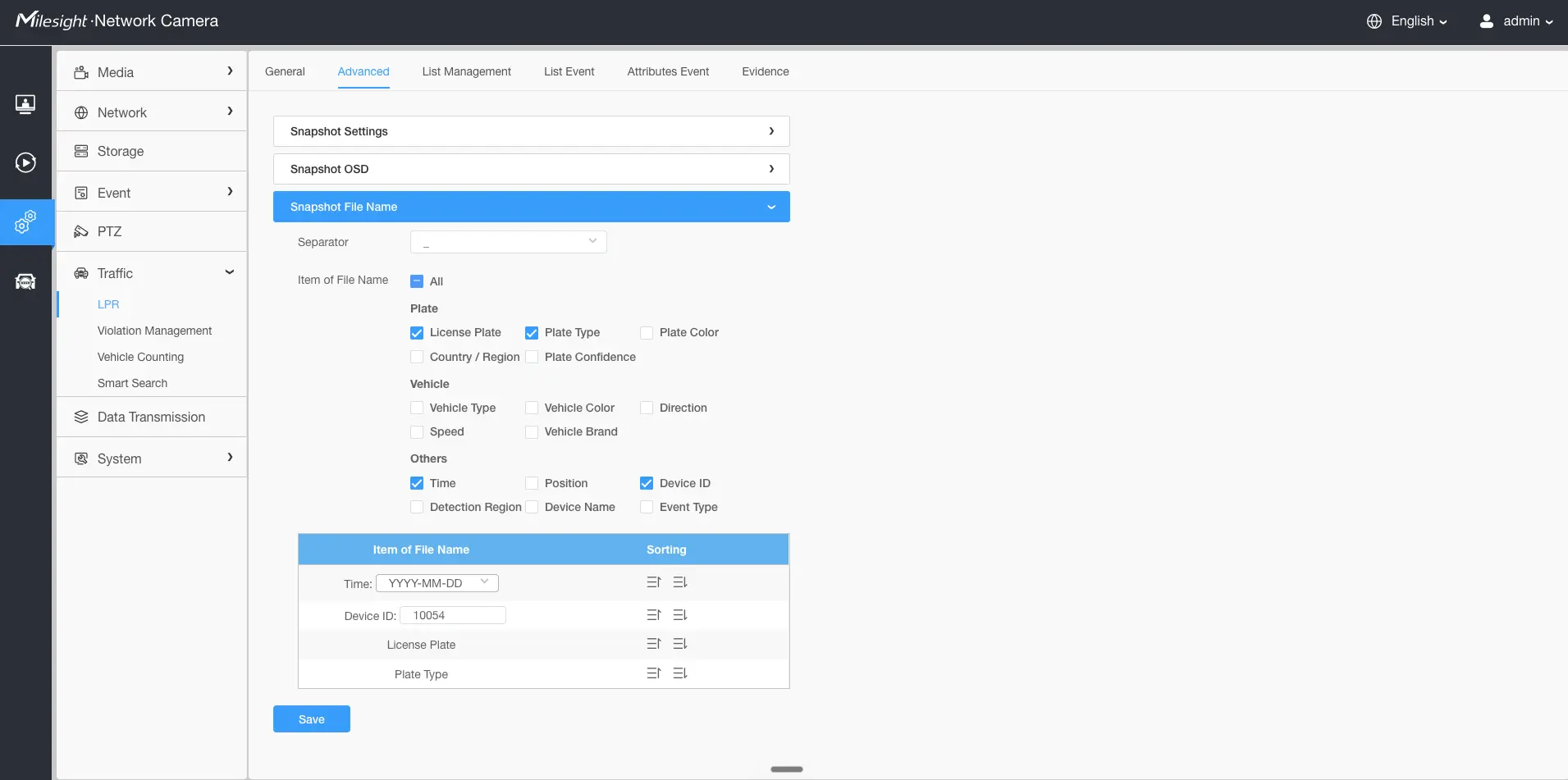

Step 6: Configure snapshot File Name ​

  1. Select the Traffic page
  2. Select the LPR page
  3. Select the advanced tab at the top of the web page
  4. Under the Snapshot file name select the settings shown in the image below
    • Separator _
    • Plate
      • License plate
      • Plate Type
    • Others
      • Time
      • Device ID
  5. The items of the file name need to be in the following order
    • Time YYYY-MM-DD
    • Device ID (enter the device ID given by Beason)
    • License plate
    • Plate type

Screenshot

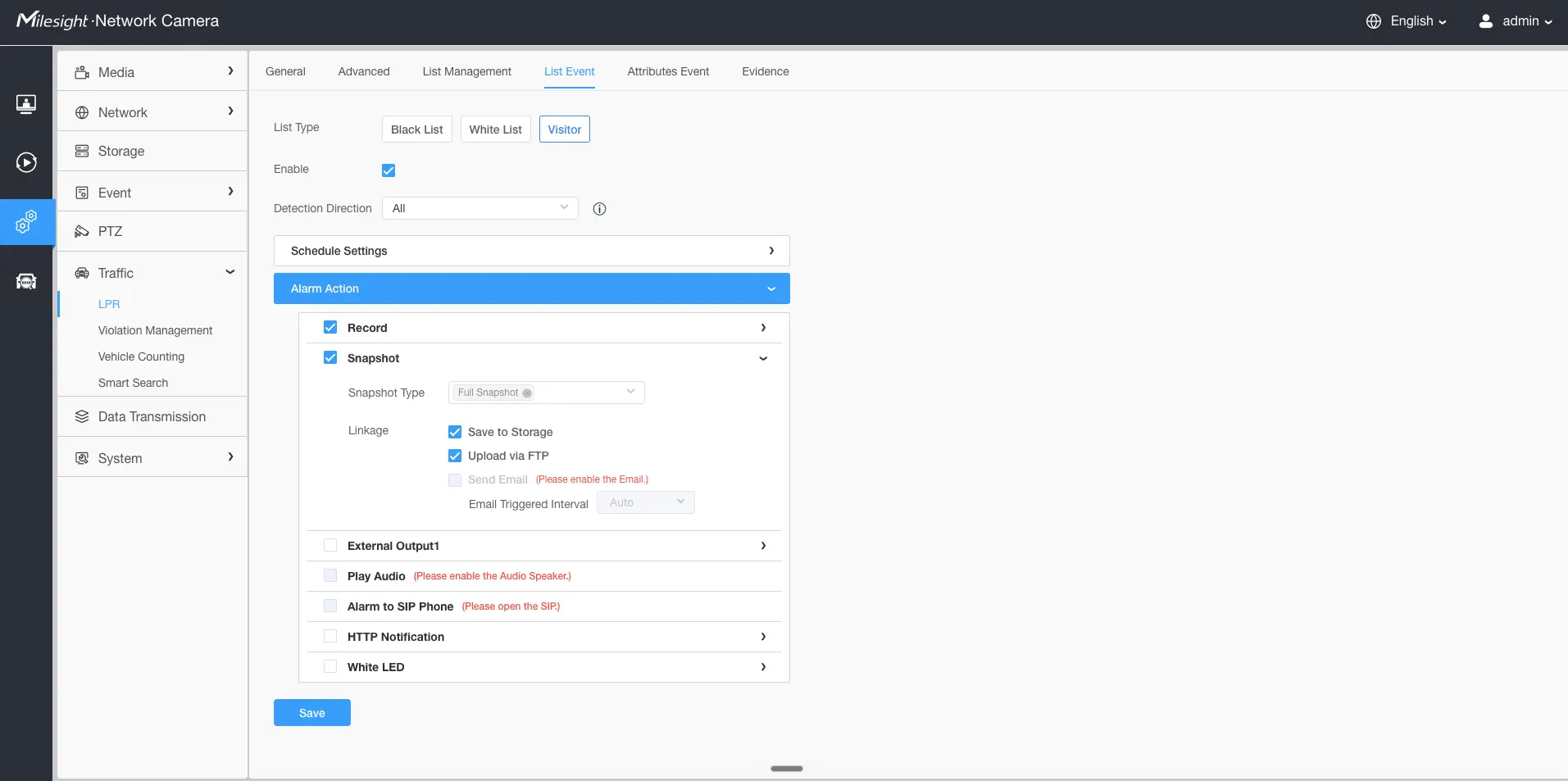

Step 5: Configure Alarm Action ​

  1. Select the List Event tab
  2. Select Vistor as your List type
  3. Check the snapshot box
  4. Select Full Snapshot for Snapshot Type
  5. Under Linkage select the following
    • Save to Storage
    • Upload via FTP

Screenshot
